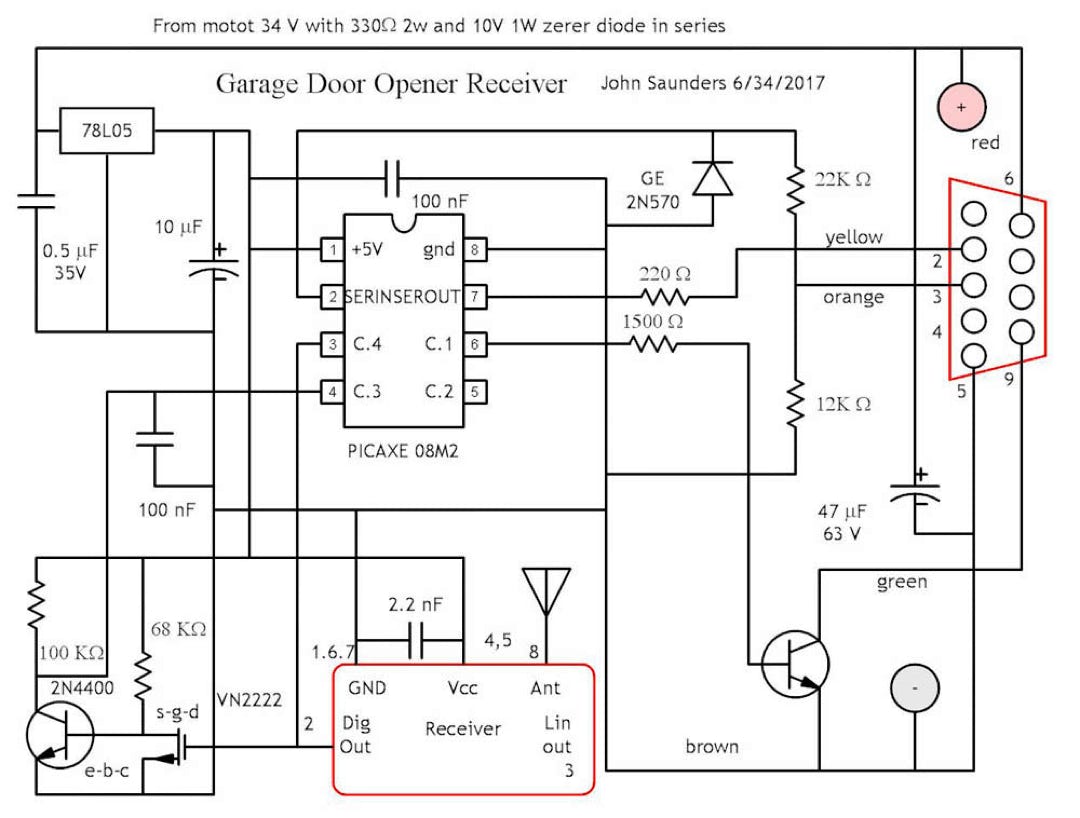

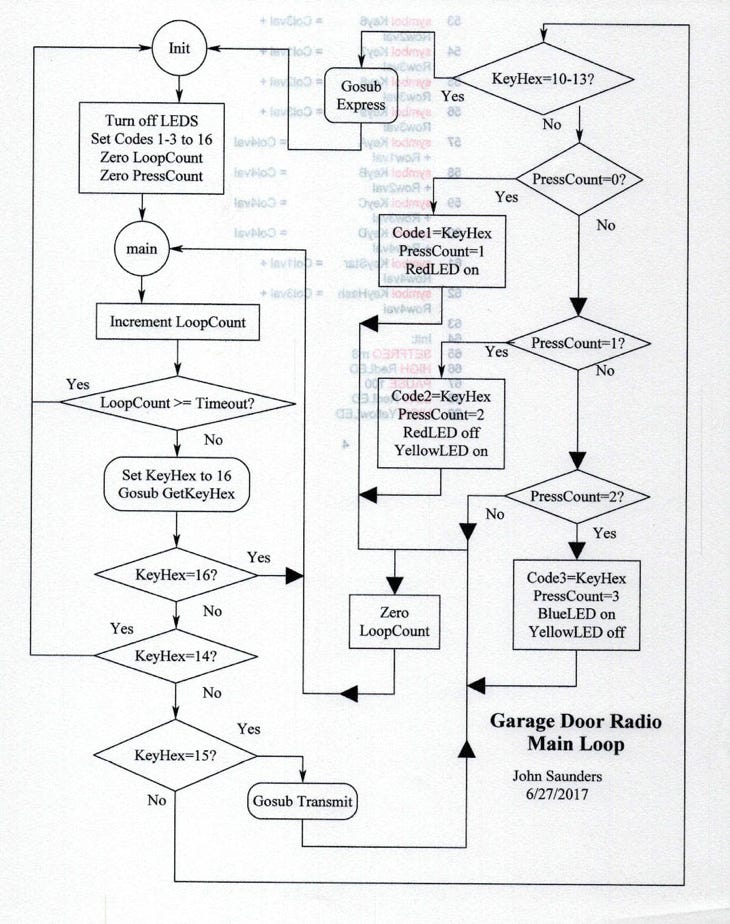

#rem Garage_Receiver_Code.bas This is the receiver on the motor support
This version uses the keypad transmitter
It has A sink (open collector) output, and a 5V regulator with 7-16V input
If incorrect code received yhen a 15-sec hold is imposed
A "2" cancels the hold
John Saunders 6/27/2017 N2400_8, ,
#endrem
#picaxe 08M2
'Output Ports
symbol Out_Port = C.1 'Controls the low logic output, pim 9
'Input ports
symbol Rcvr_Port = C.4
symbol Int_Port = pinC.3
'Variables
'Interrupt
symbol RcvrInLF = b1
symbol RcvrInCR = b2
symbol RcvrIn1 = b3
symbol RcvrIn2 = b4
symbol RcvrIn3 = b5
symbol Code1 = b6
symbol Code2 = b7
symbol Code3 = b8
symbol Pulse_Cnt = b10
symbol CodeValid = bit1
'Global
symbol HoldCnt = b11 'Used for lockout
symbol Hold = bit0 '1 if hold active
'Constants
symbol HoldDur = 22
symbol DoorData = 0
symbol ResetData = 3
DATA DoorData,(“XXX”)
DATA ResetData,(“YYY”)
init:
SETFREQ m8
LOW Out_Port
LET Hold = 0
LET HoldCnt = 0
SETINT %00001000,%00001000 'Interrupt when C,3 high
main:
PAUSE 133
INC HoldCnt
IF HoldCnt >= HoldDur THEN
LET HoldCnt = 0
LET Hold = 0
ENDIF
GOTO main
RETURN
Interrupt:
LET RcvrIn1="Z"
LET Pulse_Cnt = 0
DO WHILE Int_Port = 1
INC Pulse_Cnt
PAUSE 1
LOOP 'There is a 10 ms gap before the code to allow the serin to execute
IF Pulse_Cnt < 8 OR Pulse_Cnt > 21 THEN NotMine
SERIN [80],Rcvr_Port,N2400_8,(“something”),RcvrIn1,RcvrIn2,RcvrIn3,RcvrInLF,RcvrInCR
IF RcvrIn1 = "Z" OR RcvrInLF <> 13 OR RcvrInCR <> 10 THEN NotMine
LET CodeValid = 0
'SERTXD (RcvrIn1,RcvrIn2,RcvrIn3,13,10)
READ DoorData,Code1,Code2,Code3
'SERTXD (RcvrIn1,RcvrIn2,RcvrIn3,",",Code1,Code2,Code3,13,10)
IF RcvrIn1 = Code1 AND RcvrIn2 = Code2 AND RcvrIn3 = Code3 AND Hold = 0 THEN
HIGH Out_Port
PAUSE 1200
LOW Out_Port
LET CodeValid = 1
ENDIF
READ ResetData,Code1,Code2,Code3
IF RcvrIn1 = Code1 AND RcvrIn2 = Code2 AND RcvrIn3 = Code3 THEN
LET Hold = 0
LET CodeValid = 1
ENDIF
IF CodeValid = 0 THEN
LET Hold = 1
LET HoldCnt = 0
ENDIF
PAUSE 500
NotMine:
SETINT %00001000,%00001000 'Interrupt when C,3 high
RETURN
