These are the circuit diagrams:

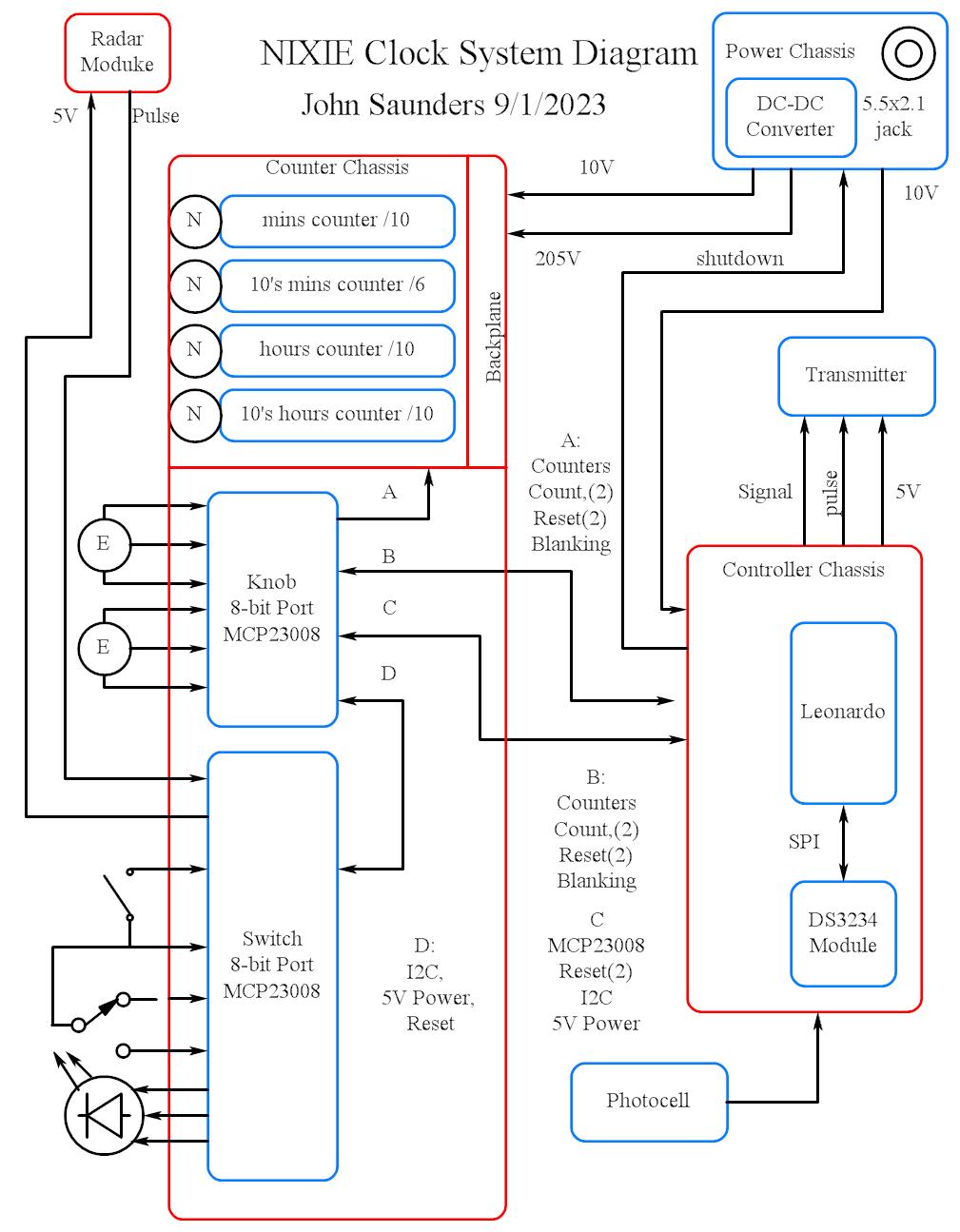

This is the system diagram

System diagram

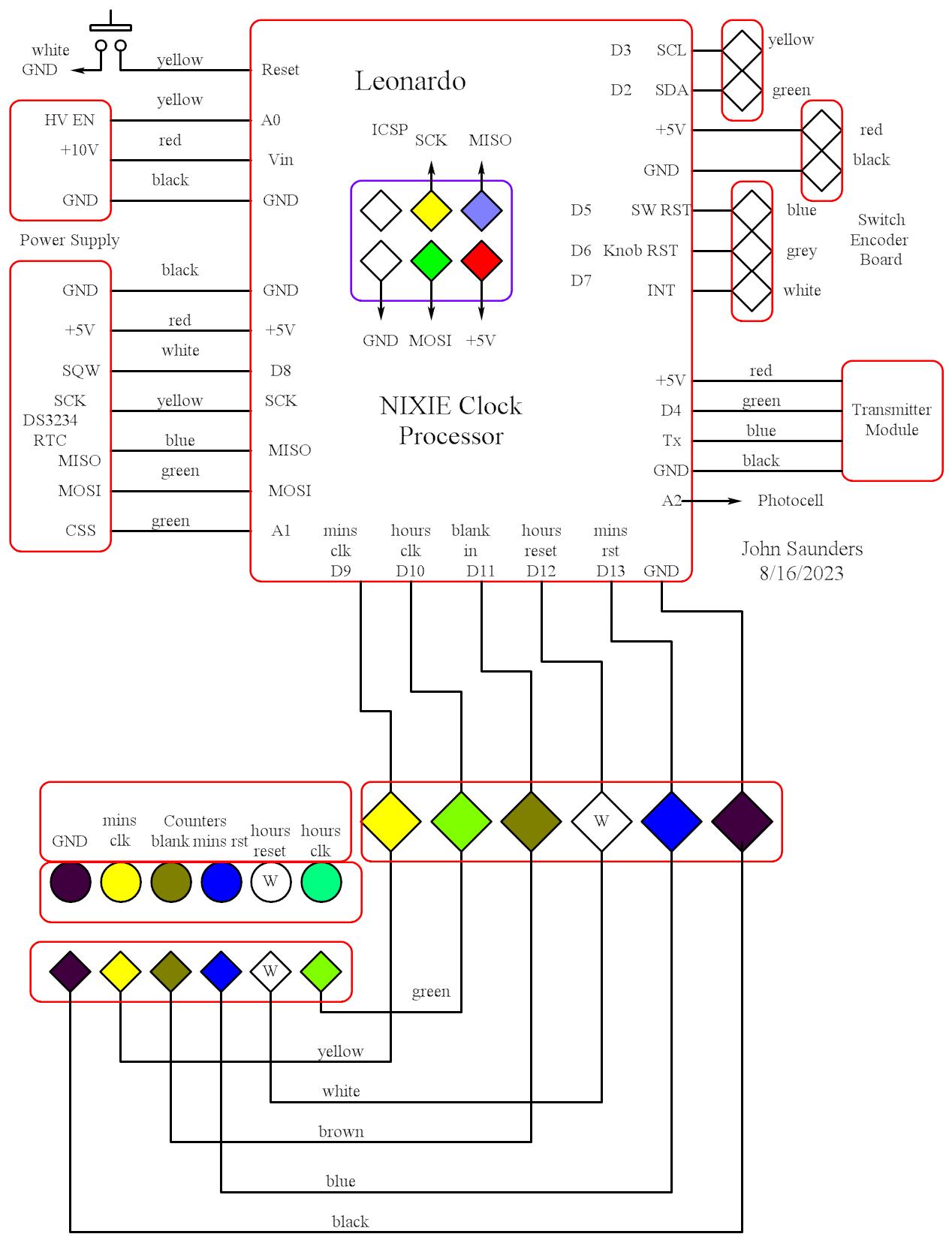

This is the Micro-Controller:

Interior Layout

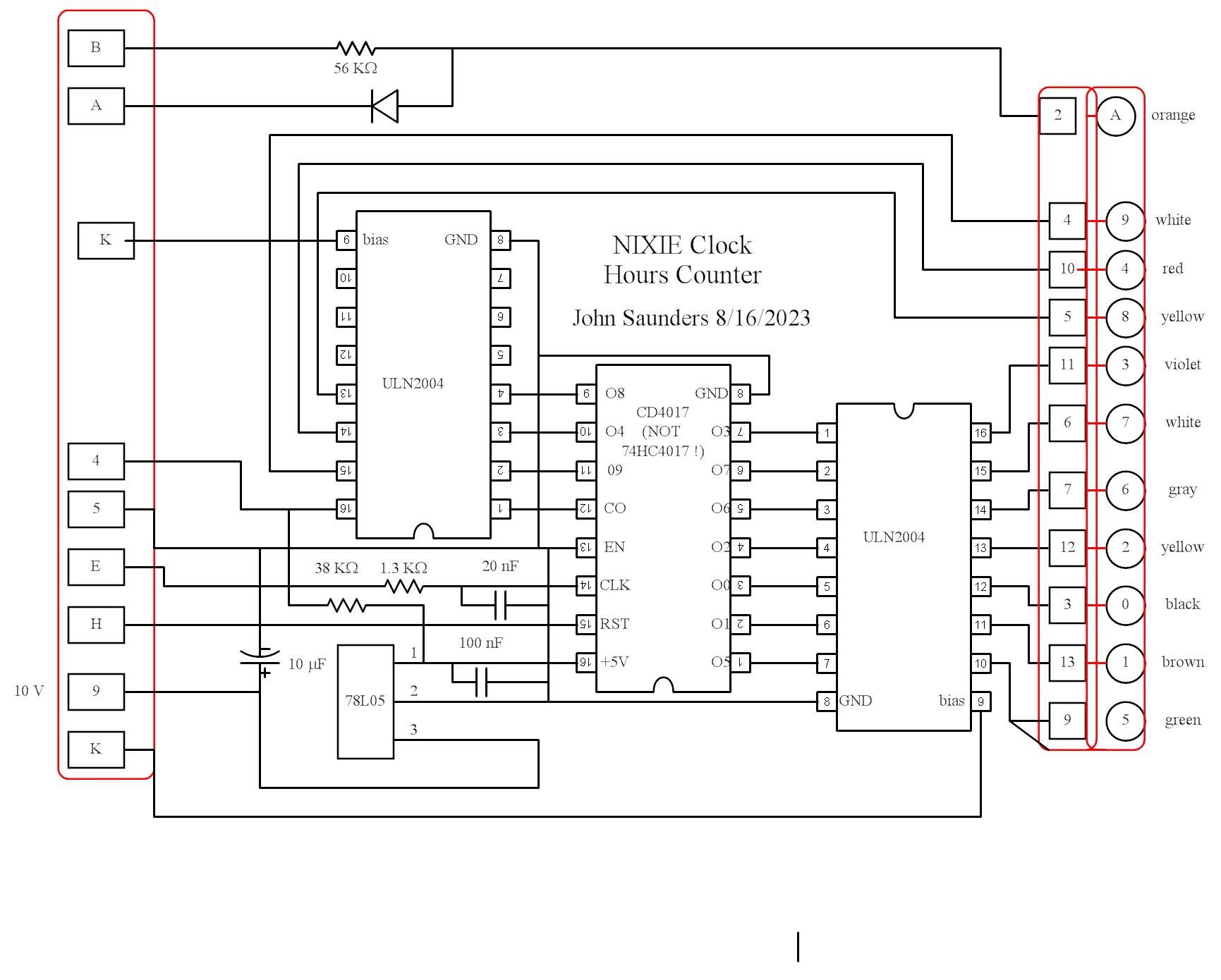

This is the new hours counter:

Power

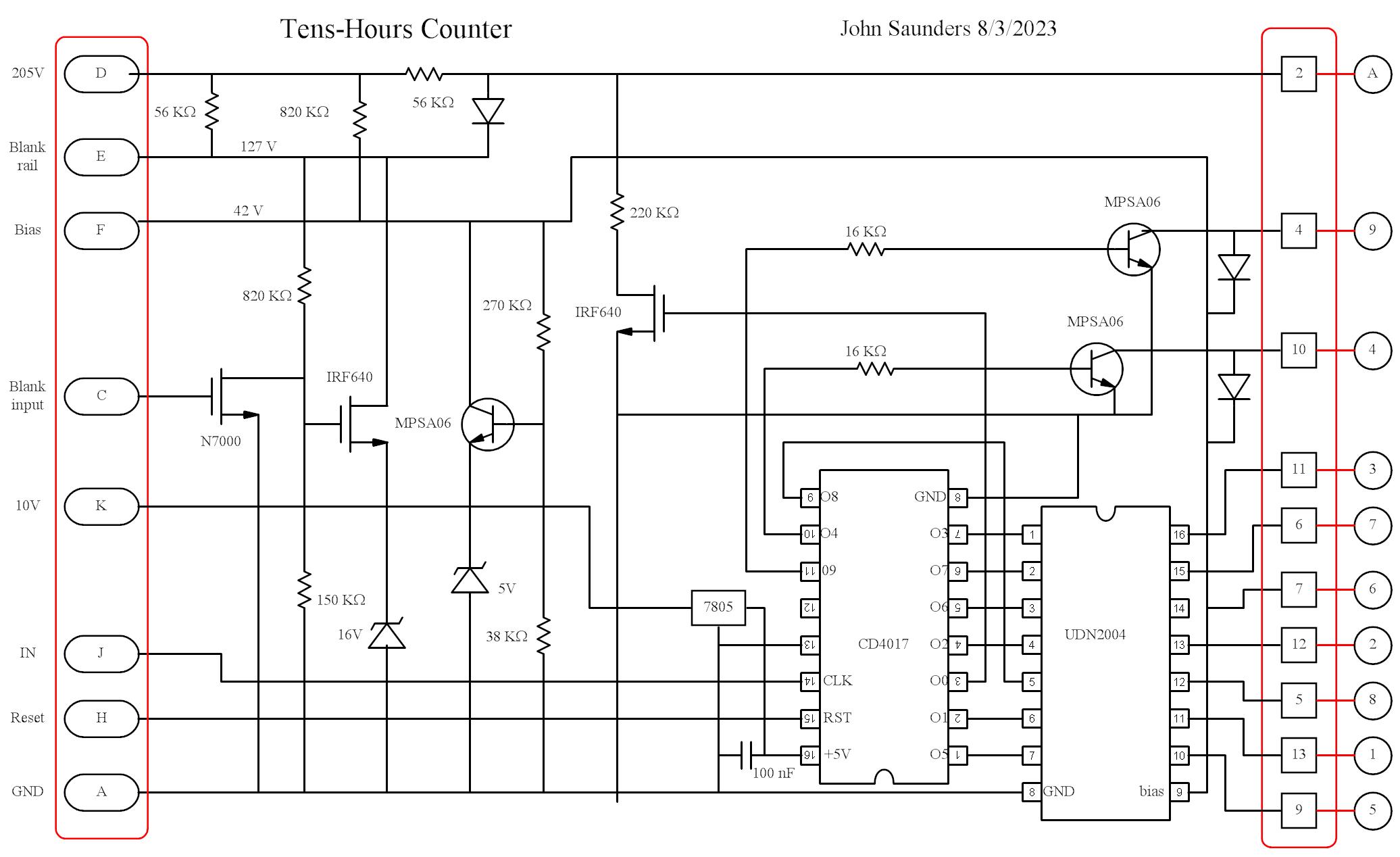

This is the new tens of hours counter:

Processor

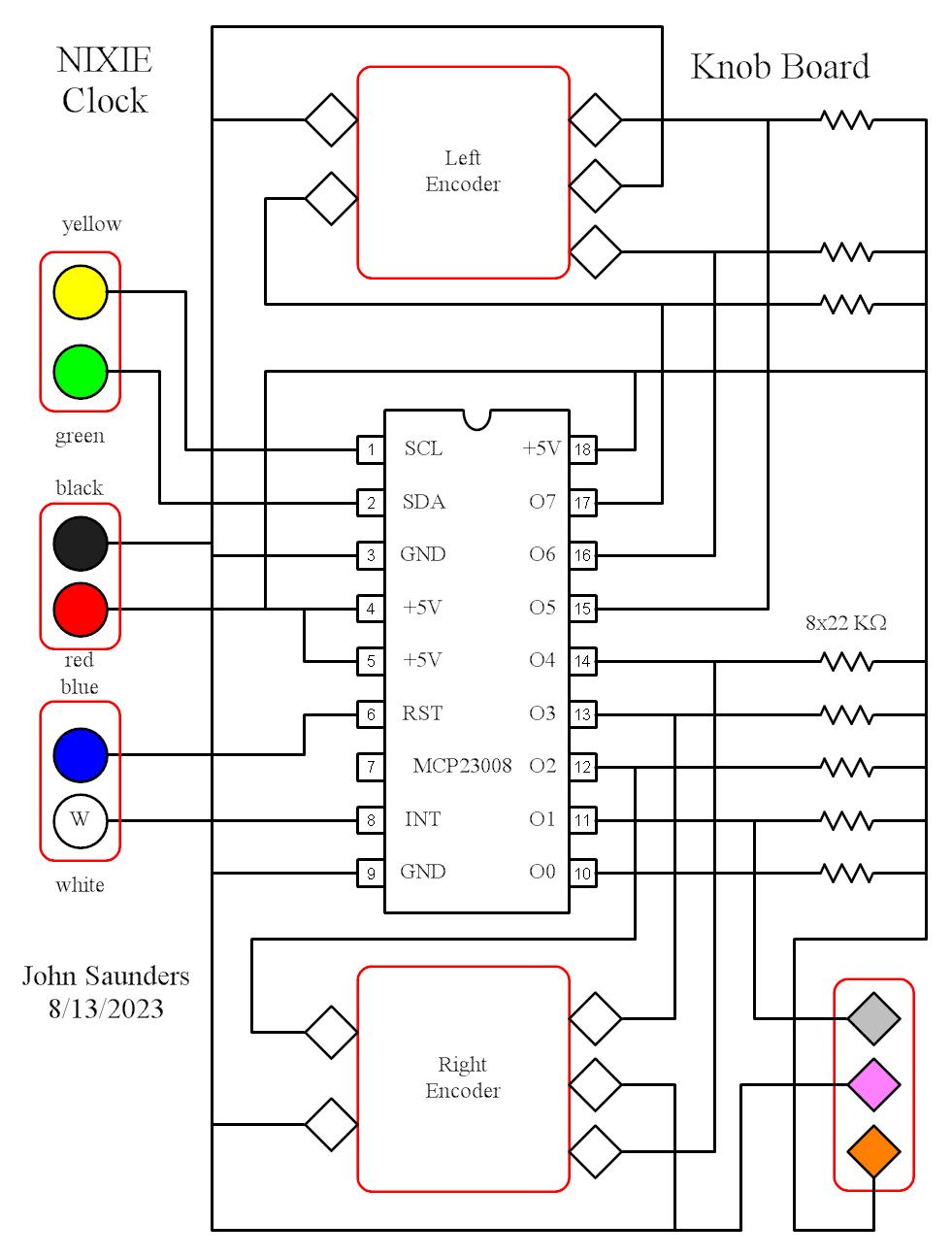

This is the knob board diagram:

I/O

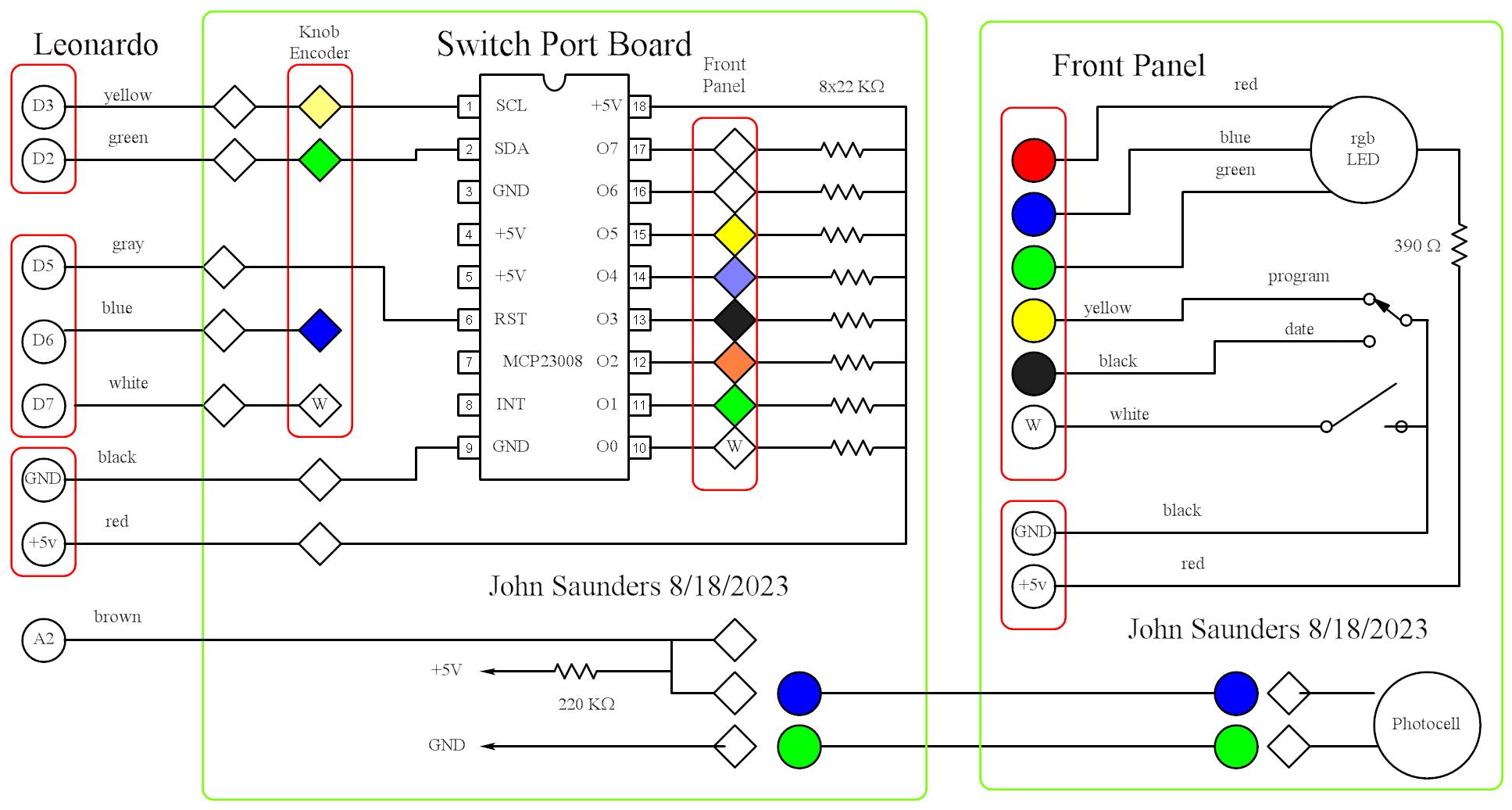

This is the control switch noard diagram:

Controls

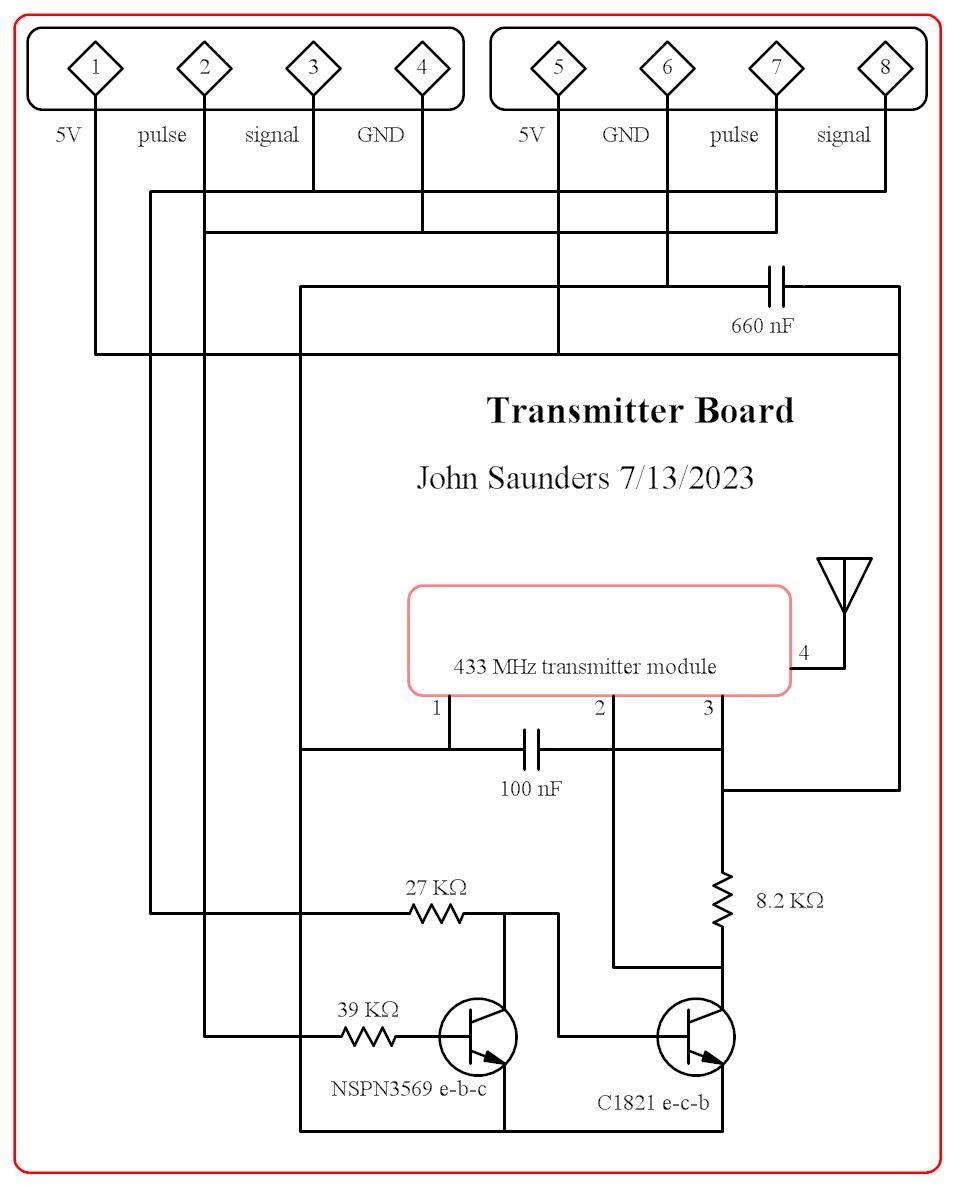

This is the Transmitter assembly diagram:

Counter Cable

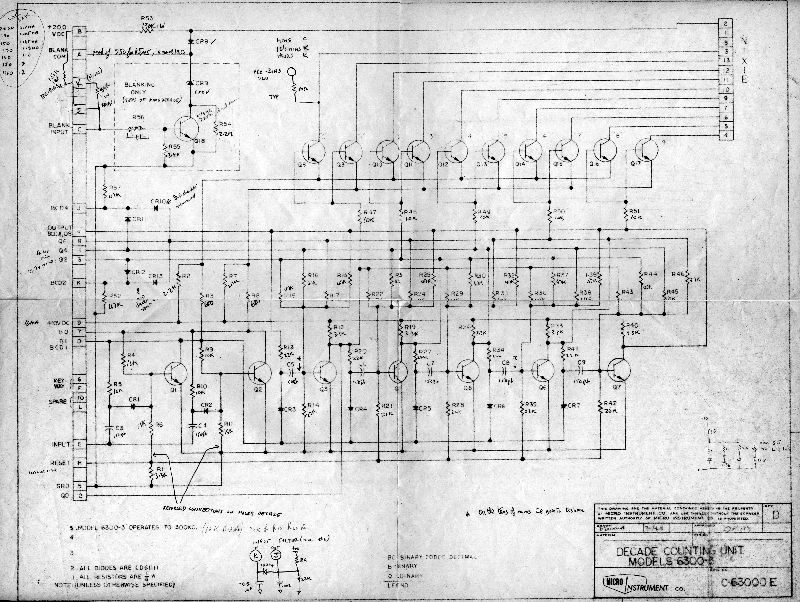

This is the original 1965 Nixie counter blueprint:

Counter
