These are the circuit diagrams
These are the circuit diagrams |
|

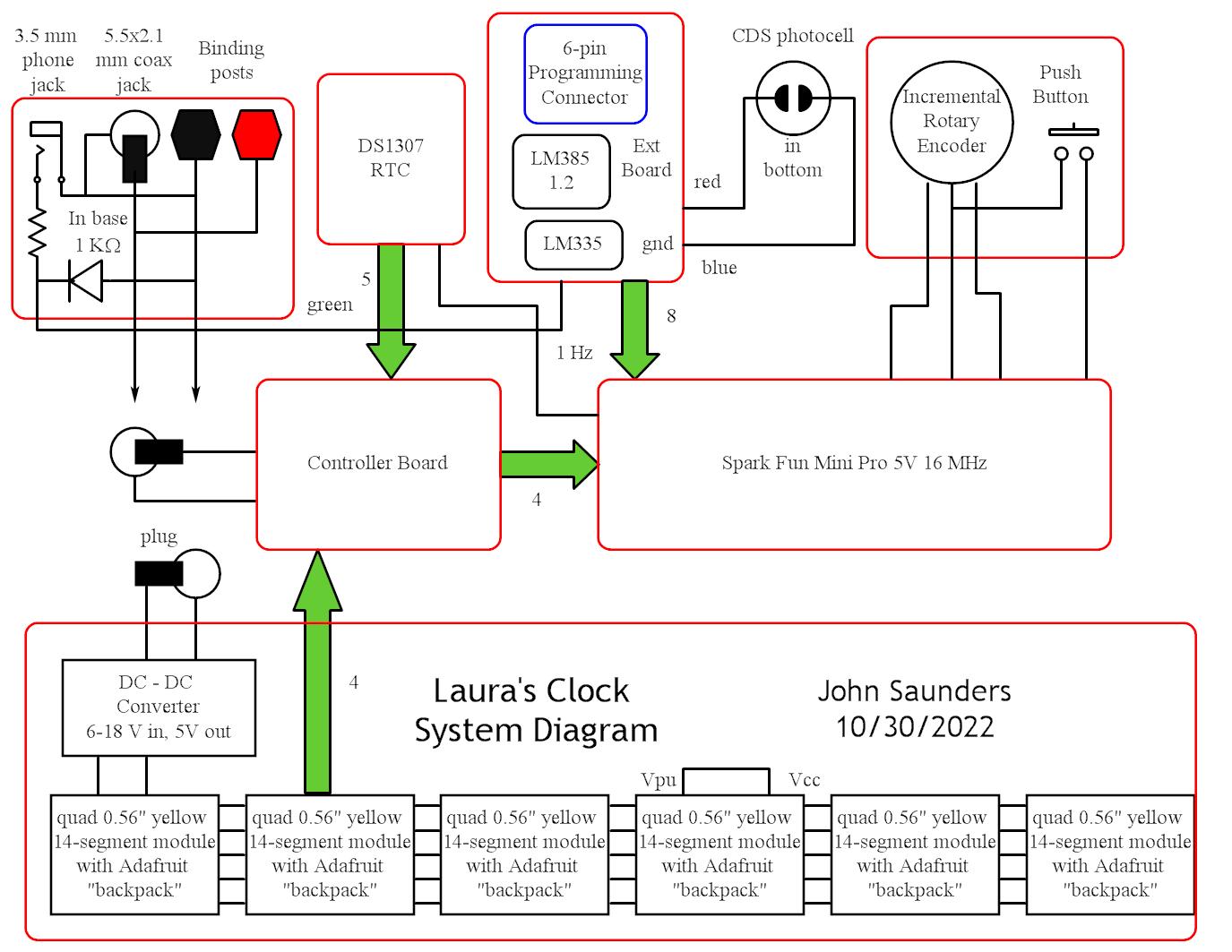

This is the System Diagram
|
|

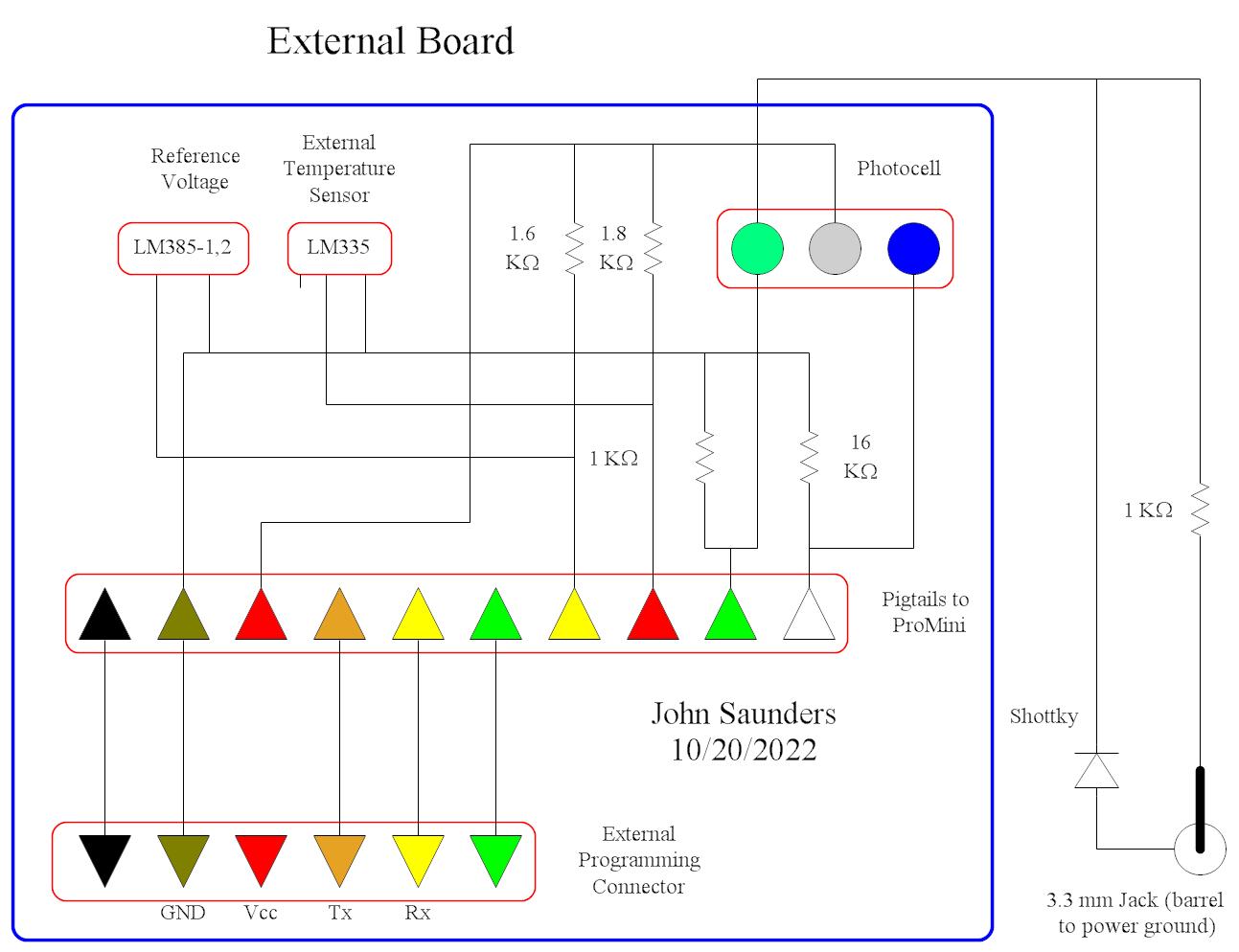

This is the circuit for the sensors, programming, and external voltage.
|
|

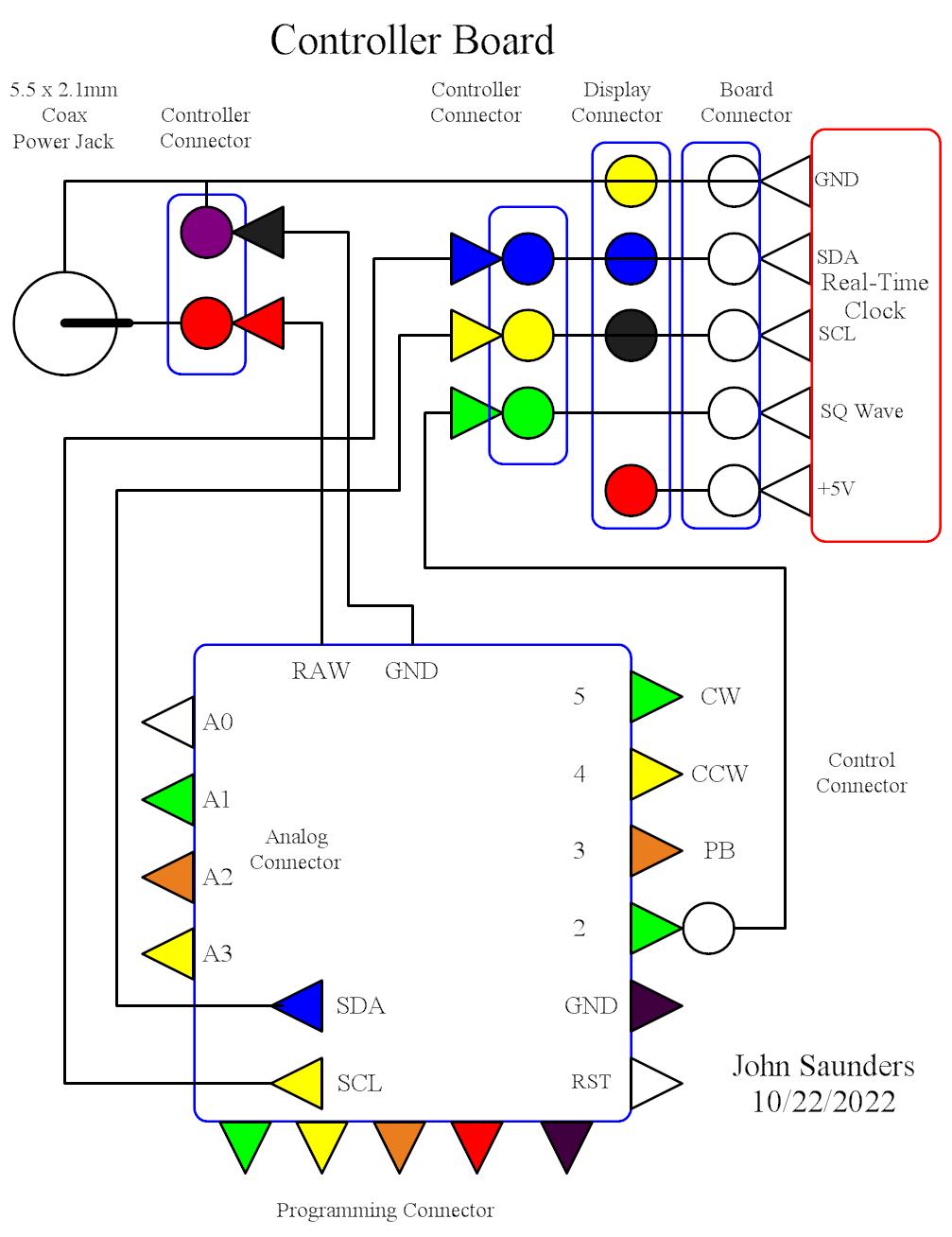

This is the circuit for the controller.
|
|

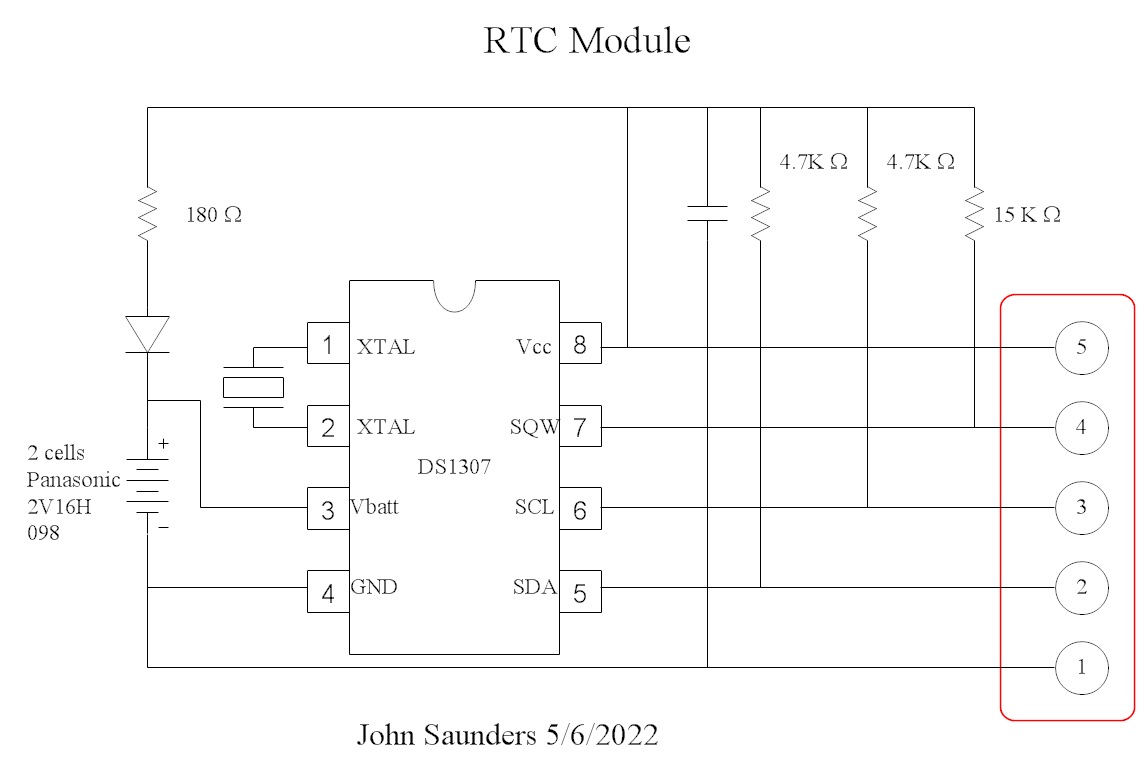

This is the circuit for the RTC module.
|
