1. A voltage input of +/- 15V scale.
2. A semi-floating input of +/- 0.5V with a switched 10 ohm resistor in parallel.
3. A SPDT relay connection.
4. A semi-floating power MOSFET with its source and drain connections.

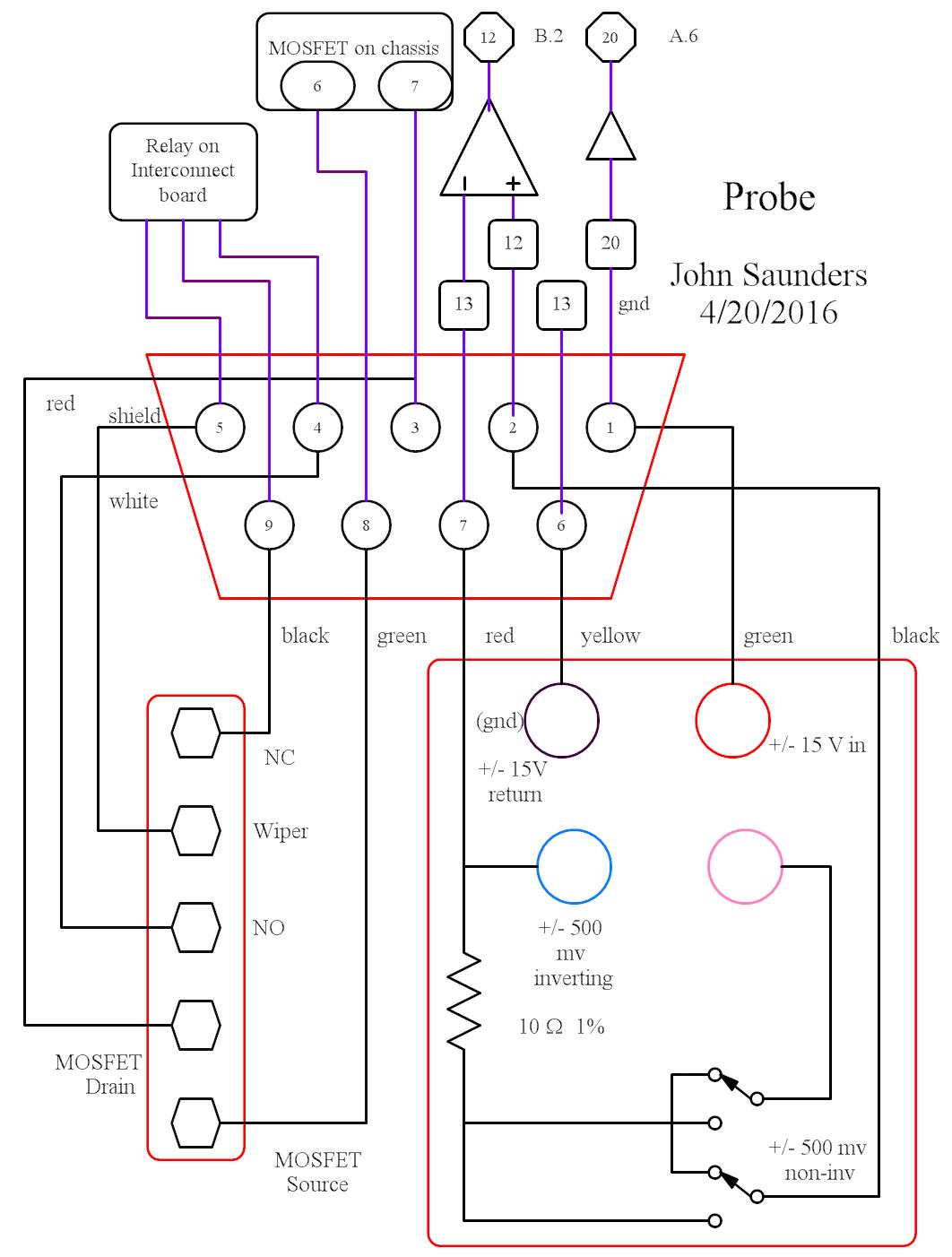

Probe |
| The Probe optionally plugs into the rear of the Controller to provide: 1. A voltage input of +/- 15V scale. 2. A semi-floating input of +/- 0.5V with a switched 10 ohm resistor in parallel. 3. A SPDT relay connection. 4. A semi-floating power MOSFET with its source and drain connections.
|
| |
