Sensor Box and Sensor Photos

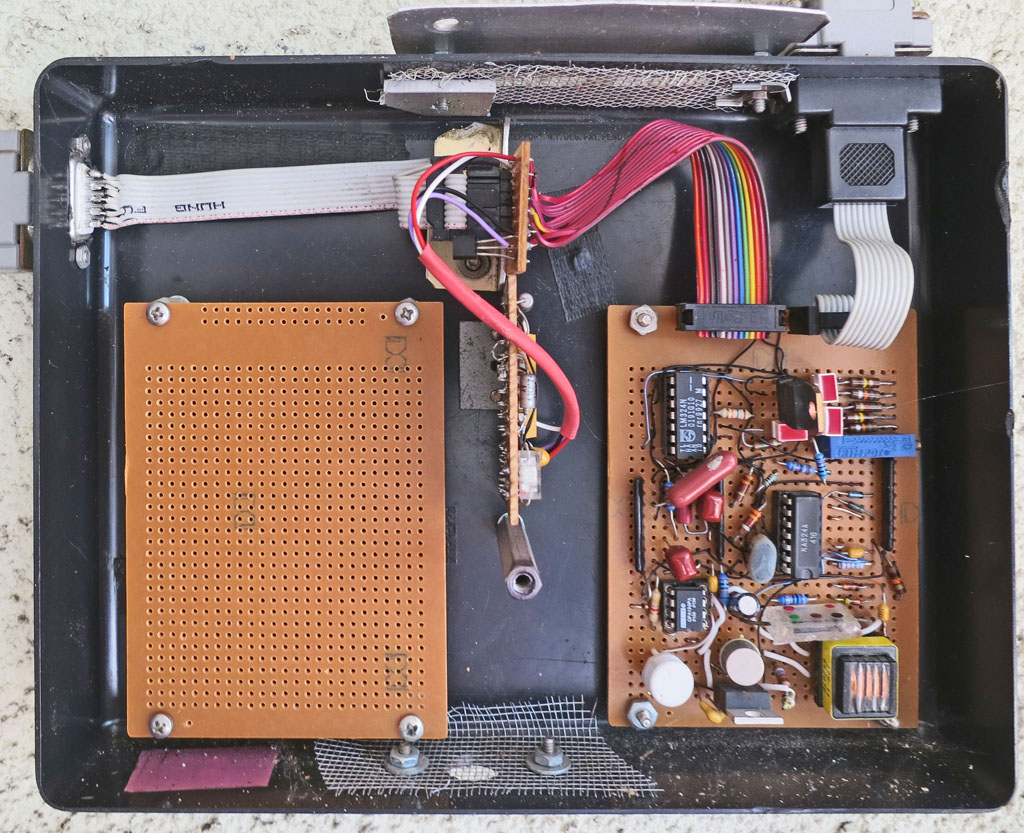

Inside the Sensor BoxSensor Box

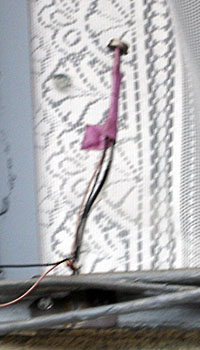

Patio Photocell
Patio Photocell

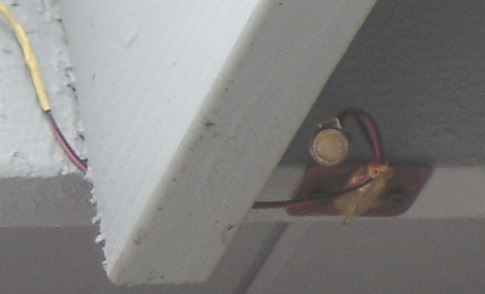

Backyard Photocell
back Photocell

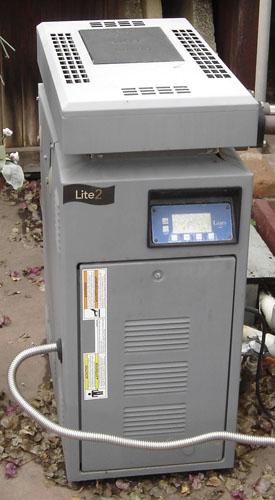

The spa heater here has a gas valve powered by AC. An Opto-isolator is connected to this circuit to monitor how ofter and how long the heater runs.

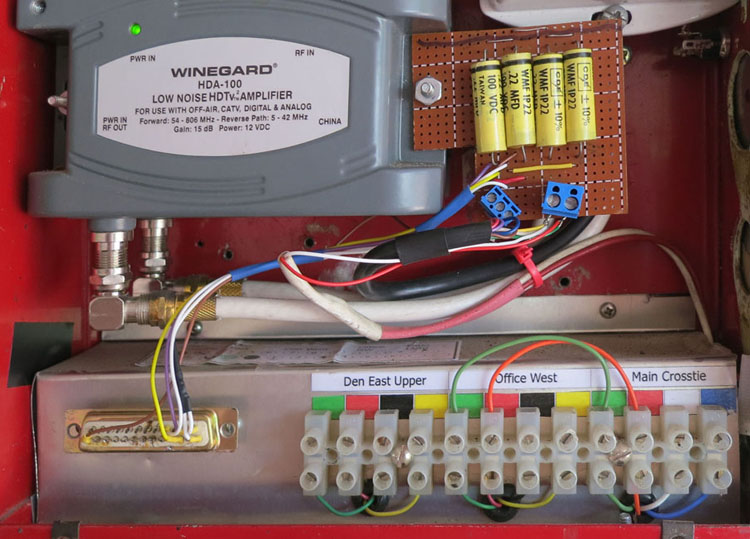

Spa heater		The photocell signals are filtered in the Secondary Box
Secordary Box
