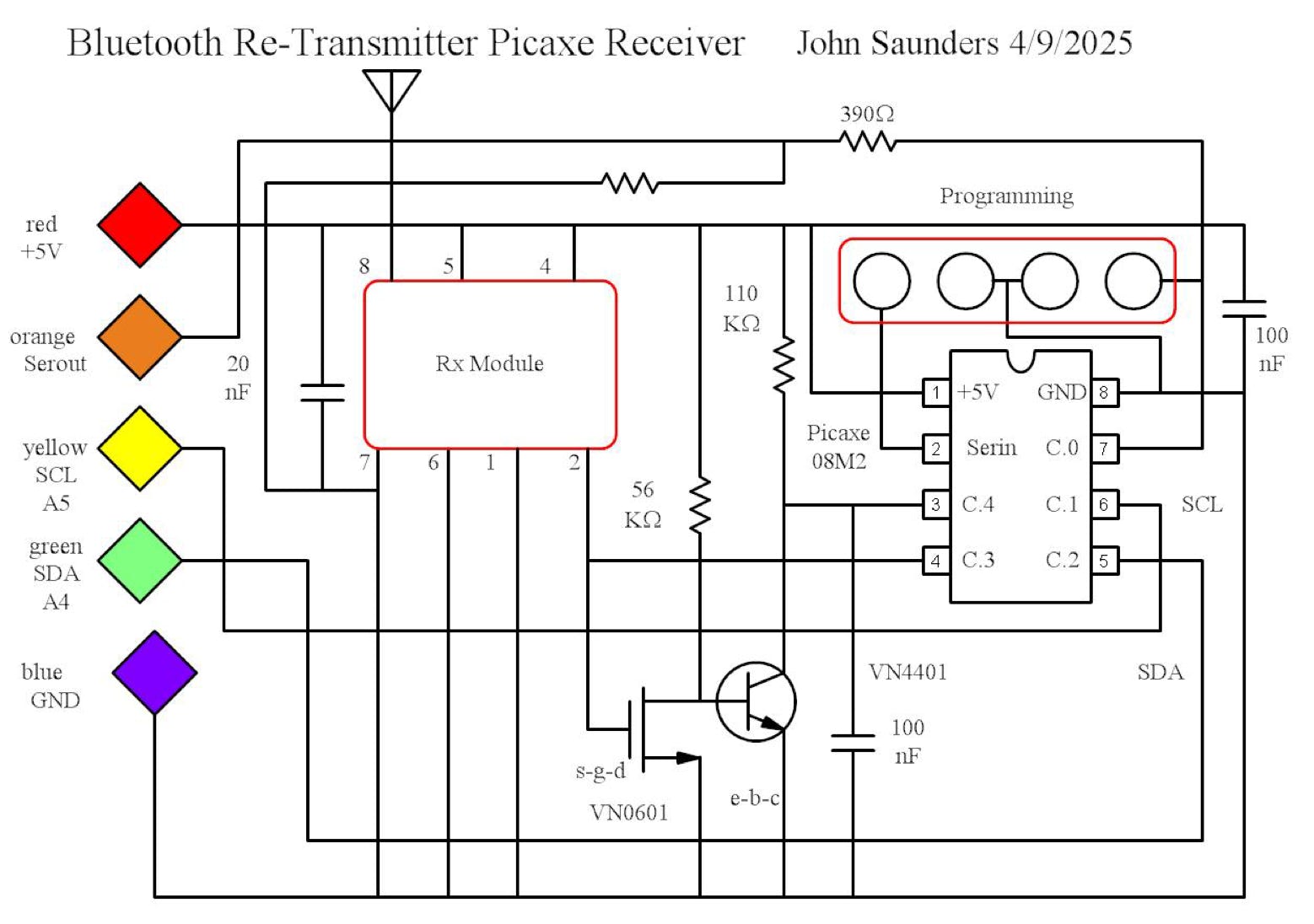

#rem btTransceiver.bas for the Picaxe subassembly of the Bluetooth Transceiver
* The Bluetooth Transceiver is housed in a in a sealed beige plastic box.
* In addition to the receiver, the box contains an Arduino Pro Mini,Nano33BLE
* and two LED indicator lamps
* All is powered via a 5.5x2.1 coaxia;jack with 9.35V input to a 7805 regulator, .
* The receiver receives selected messages broadcast on the 433 MHz ISM band.
* After verification and buffering, the messages are forwarded to the Arduino by I2C.
* John Saunders 13/4/2025
#endrem
#picaxe08M2
#rem The 08M2 has RAM addteses from 28 to 127
RAM Addresses 28- 59 store incoming RF messages
#endrem
rem --------------------------------- PORTS ----------------------------------------
rem Inputs C.1 is I2C SCL, C.2 is SDA
symbol ReceiverData = C.3
symbol IntPort = PinC.4
rem --------------------------------- constants ----------------------------------------
symbol buf_start = 28
symbol buf_end = 59
rem --------------------------------- Global Counters and General VARIABLES ----------------------------------------
symbol DataAddr = b3 'Top level iteration
symbol Indx = b4 'Second level iteration
symbol Scratch = b5 'Use only in math. No GOSUBs while it contains valid data
symbol CharData = b6 'Multi-use byte variable especially for ASCII data, subroutine transfer
symbol Buf_count = b7 'Used to address an item in EEPROM
rem --------------------------------- DEDICATED VARIABLES ----------------------------------------
rem dedicated global
symbol cmdVal = b8 'For message=KeyCode,Command=c,Disp;ay=D,Errors=E & F
rem --------------------------------- INTERRUPT VARIABLES ----------------------------------------
symbol MsgEndAddr = b13
symbol MsgLenChar = b14
symbol BuffAddr = b15
symbol KeyCode = b16
symbol IntScratch = b17
symbol ChckSum = b18
symbol ChckHex = b19
symbol RcvrCnt = b20
symbol RcvrHex = b21
symbol RcvrHex = b21
Init:
SETFREQ m16
HI2Csetup I2CMASTER,0x0E,I2Cslow_8,I2Cbyte
Buf_count = buf_start
SETINT %00010000,%00010000 'Interrupt when C,4 high
Main:
POKE Buf_count, 32 'space
INC Buf_count
IF Buf_count >= buf_end THEN
Buf_count = buf_start
ENDIF
GOTO main
Interrupt:
LET bptr = buf_start + 4
LET KeyCode = 0
LET IntScratch = 0
DO WHILE IntPort = 1 AND IntScratch < 60
LET IntScratch = IntScratch + 1
LOOP 'There is a 10 ms gap before the code to allow the serin to execute
IF IntScratch < 10 OR IntScratch > 55 THEN NotMine
SERIN [60],ReceiverData,N2400_16,("14L1776"),KeyCode,IntScratch,MsglenChar,IntScratch,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc, @bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc
IF KeyCode > "m" AND KeyCode <= "z" THEN 'A data mesage
IF MsgLenChar < 61 OR MsgLenChar > 81 THEN NotMine
LET RcvrCnt = MsgLenChar - 61
LET ChckSum = 0
LET bptr = buf_start + 4
FOR IntScratch = 0 TO RcvrCnt
LET ChckSum = ChckSum + @bptrinc
NEXT
LET ChckHex = ChckSum / 16
IF ChckHex < 10 THEN
LET ChckHex = ChckHex+ "0"
ELSE
LET ChckHex = ChckHex + "7"
ENDIF
LET bptr = bptr + 1
LET RcvrHex = @bptrinc
IF ChckHex <> RcvrHex THEN
GOTO NotMine
ENDIF
LET ChckHex = ChckSum & $F
IF ChckHex < 10 THEN
LET ChckHex = ChckHex + "0"
ELSE
LET ChckHex = ChckHex + "7"
ENDIF
LET RcvrHex = @bptr
IF ChckHex <> RcvrHex THEN
GOTO NotMine
ENDIF
LET MsgEndAddr = bptr - 2
LET BuffAddr = buf_start + 2
POKE BuffAddr, KeyCode, ","
ENDIF
IF KeyCode = "O" THEN
LET BuffAddr = buf_start + 2
POKE BuffAddr, "O", ",", MsgLenChar, ","
LET MsgEndAddr = buf_start + 6
ELSEIF KeyCode >= "0" AND KeyCode < "n" THEN
LET BuffAddr = buf_start + 2
POKE BuffAddr, KeyCode, ","
LET MsgEndAddr = buf_start + 4
ENDIF
HIGH C.0
POKE Buf_start,"<",","
POKE MsgEndAddr, ">"," "," "," "," "
LET bptr = Buf_start
HI2COUT Buf_start, (@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptr)
NotMine:
LOW C.0
SETINT %00010000,%00010000 'Interrupt when C,4 high
RETURN
