These are the Controller Interconnect circuit diagrams:

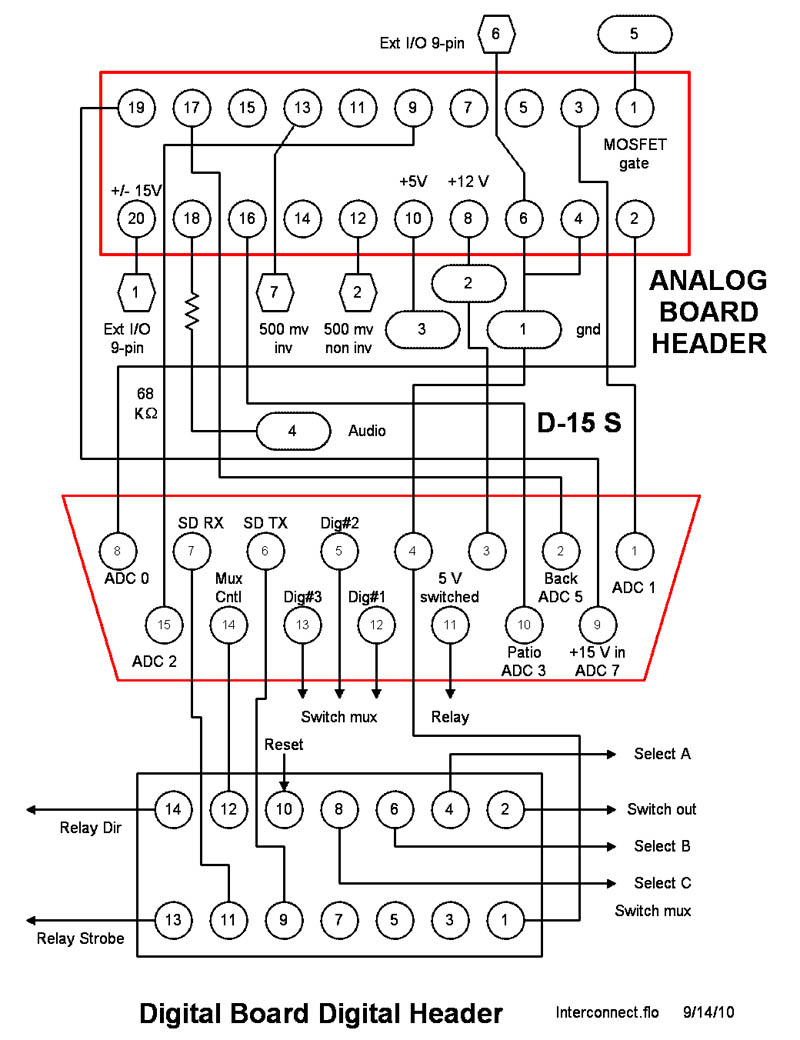

These are the connections between headers.

Headers

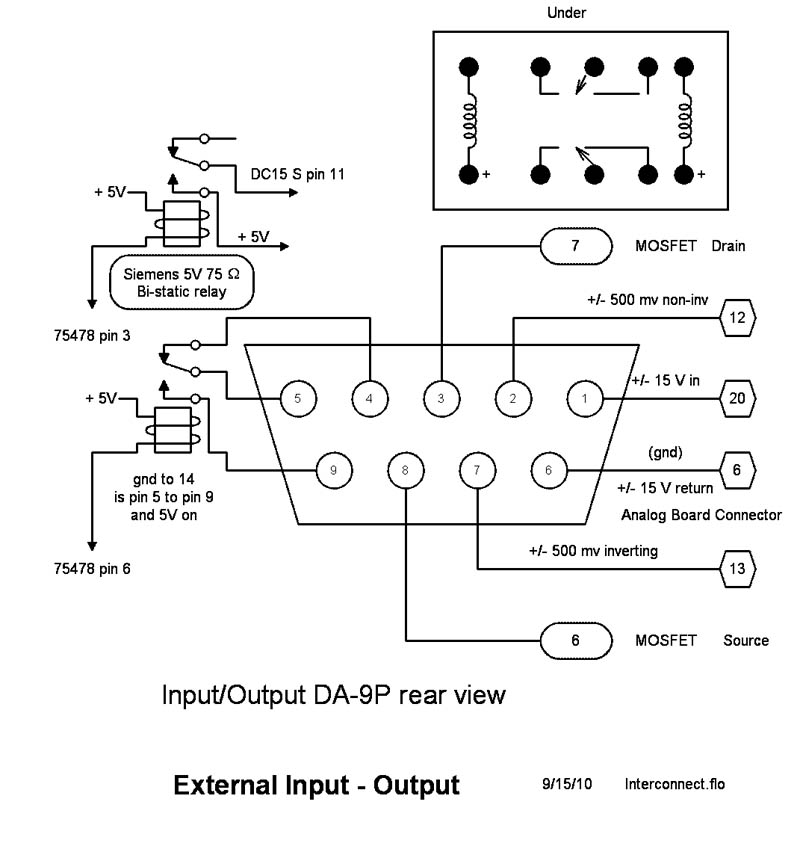

This is the probe connector and relays:

Relays

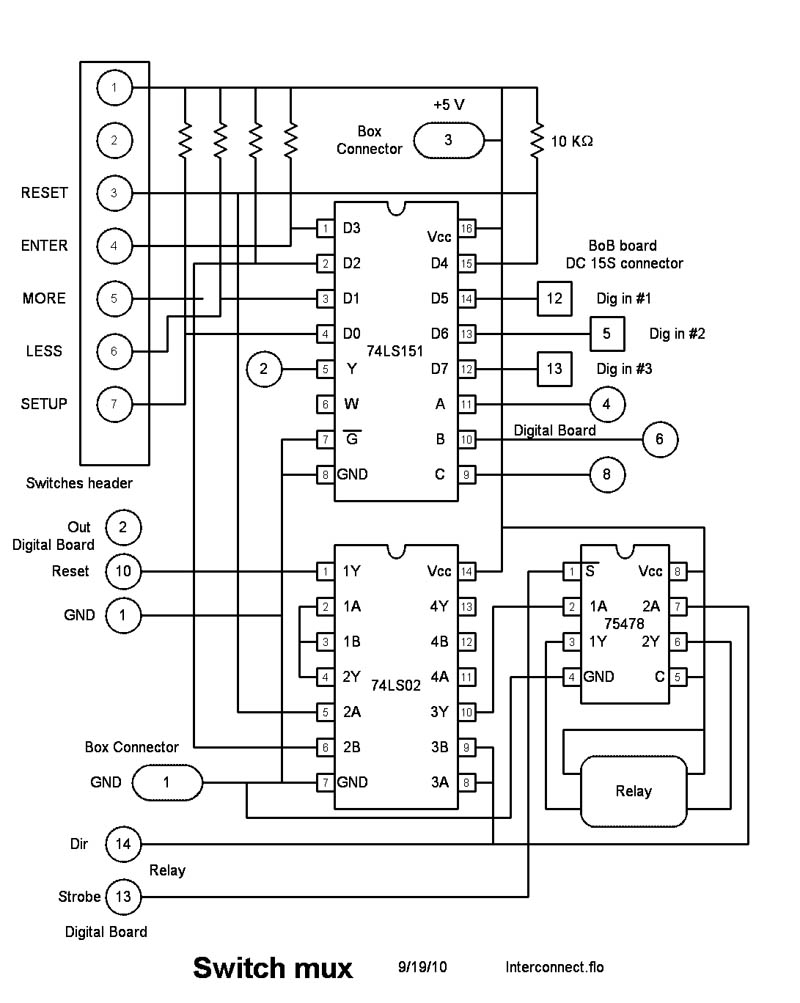

Thus is the switch multiplexer and the relay driver circuits:

Rear Panel
