rgb Matrix Display Schematics

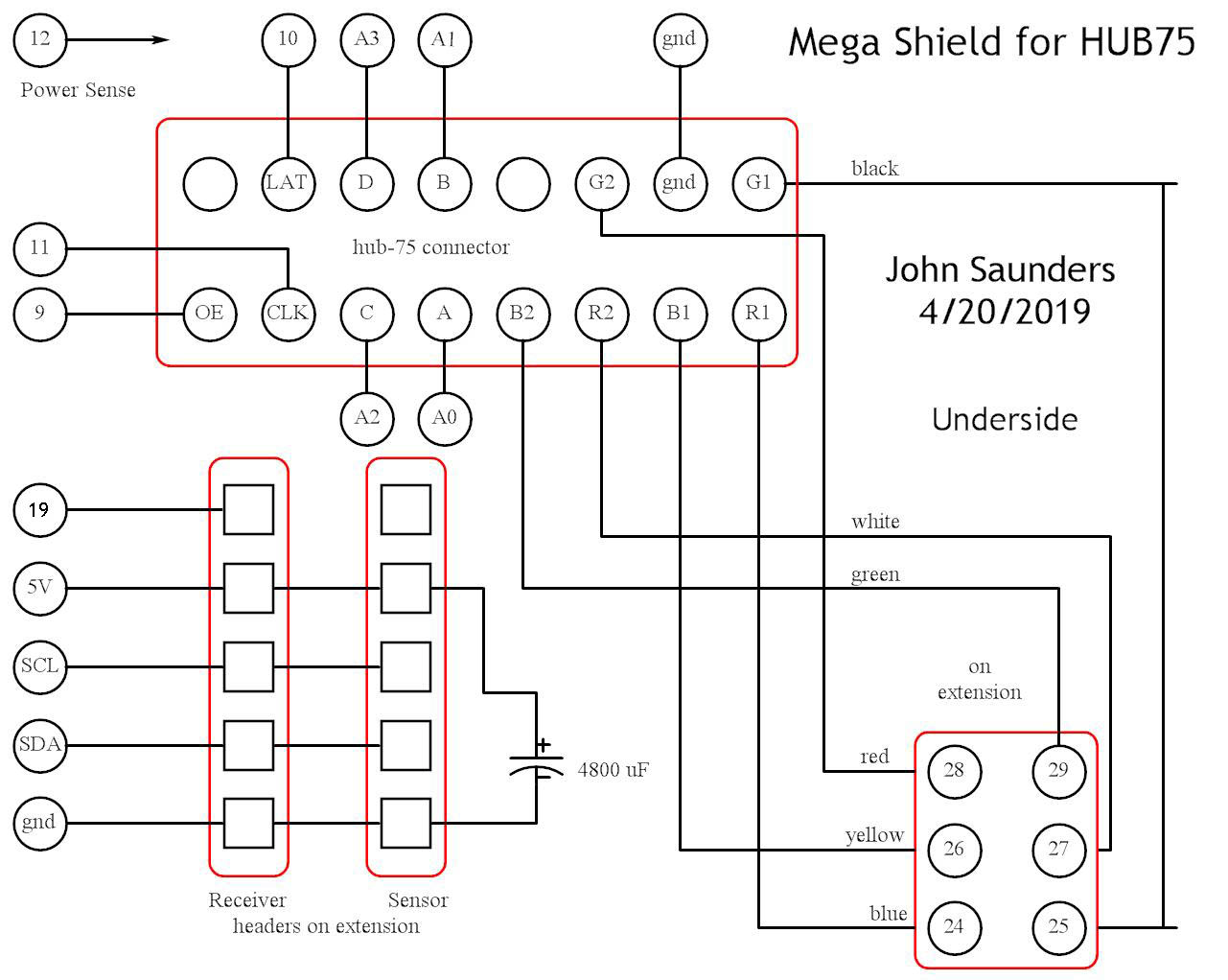

Mega Shield

This is just a place to make many of the interconnections.

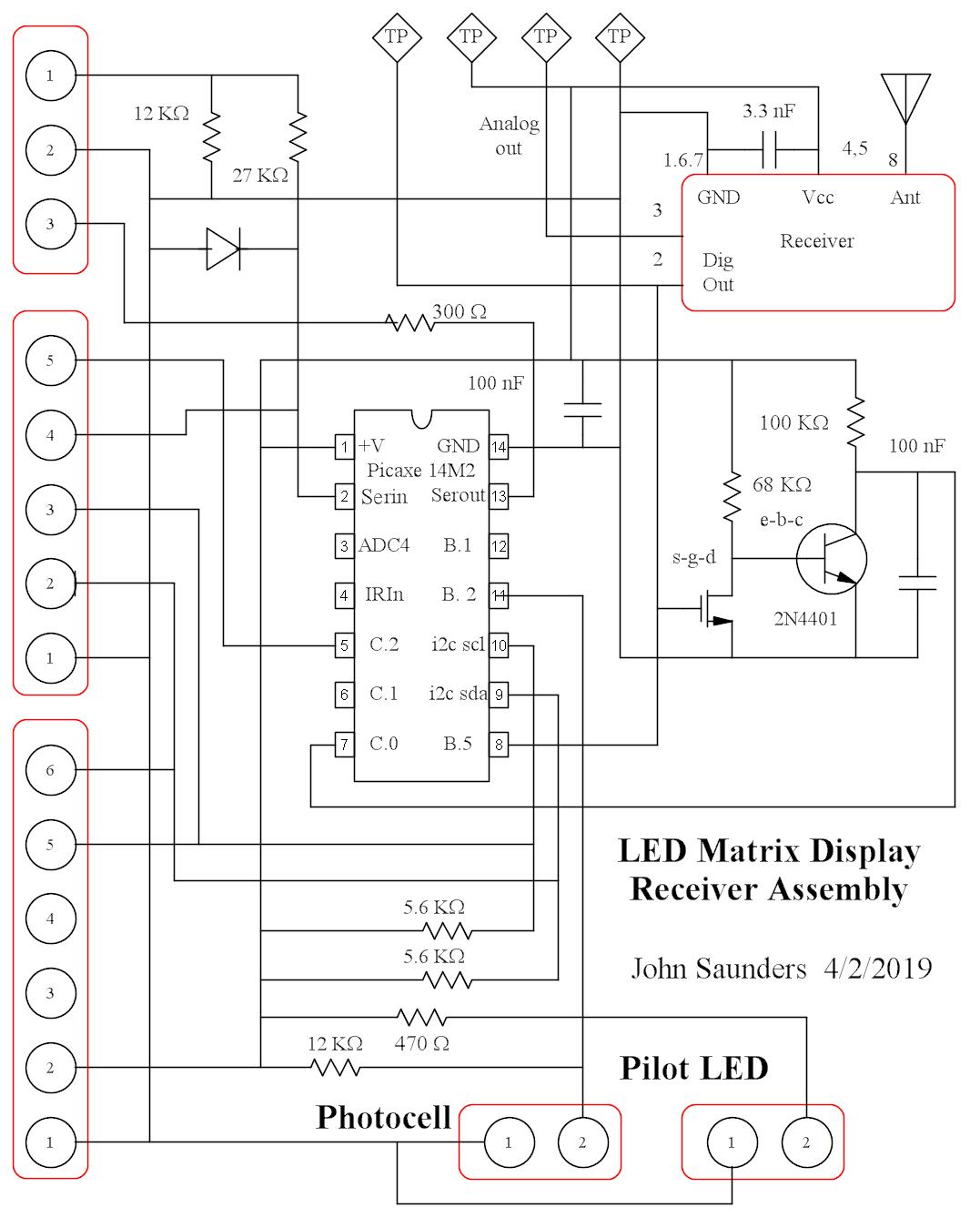

Receiver board

The receiver is similar to others, such as the Red LED Display. It does have added I2C connections to communicate with the Mega.This uses the upper 5-pin header. The lower header was put in for the temperature-humidity sensoor, but this was re-located outside.
